Specifications:

Rated Current: 32 A

Rated voltage: 480V

Insulation Resistance:≥500MΩ(DC500V)

Withstand Voltage:2500V

Contact Resistance:0.5mΩ Max

Plastic fire rating: UL94 V - 0

Mechanical Life:More than 10000 Times(No-Load Insertion and Extraction)

Insertion force of products: 80 N

Waterproof level: IP54 (work)

Working Environment:-30℃-55℃

Features:

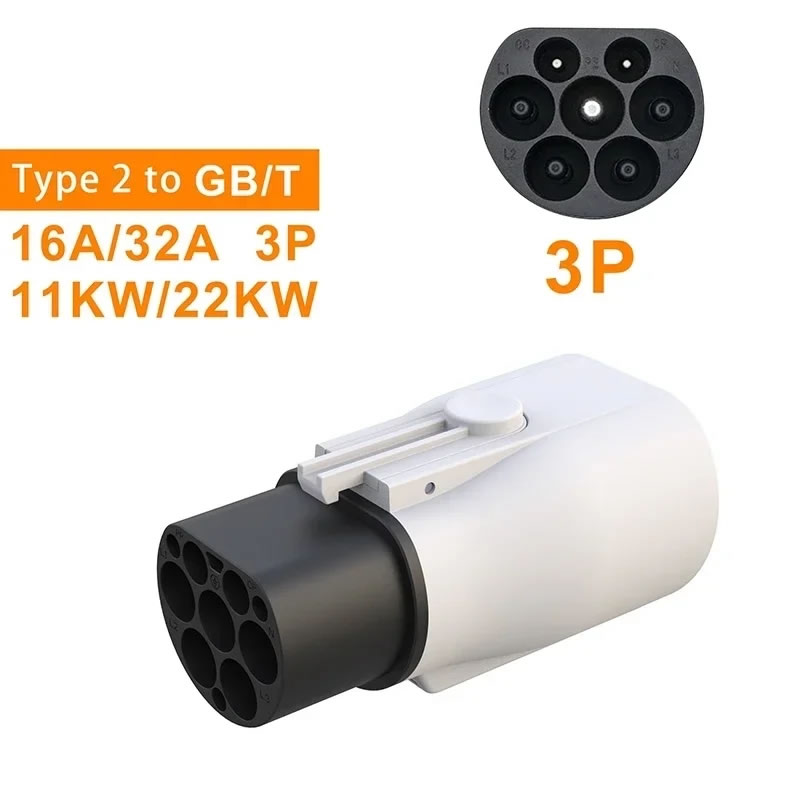

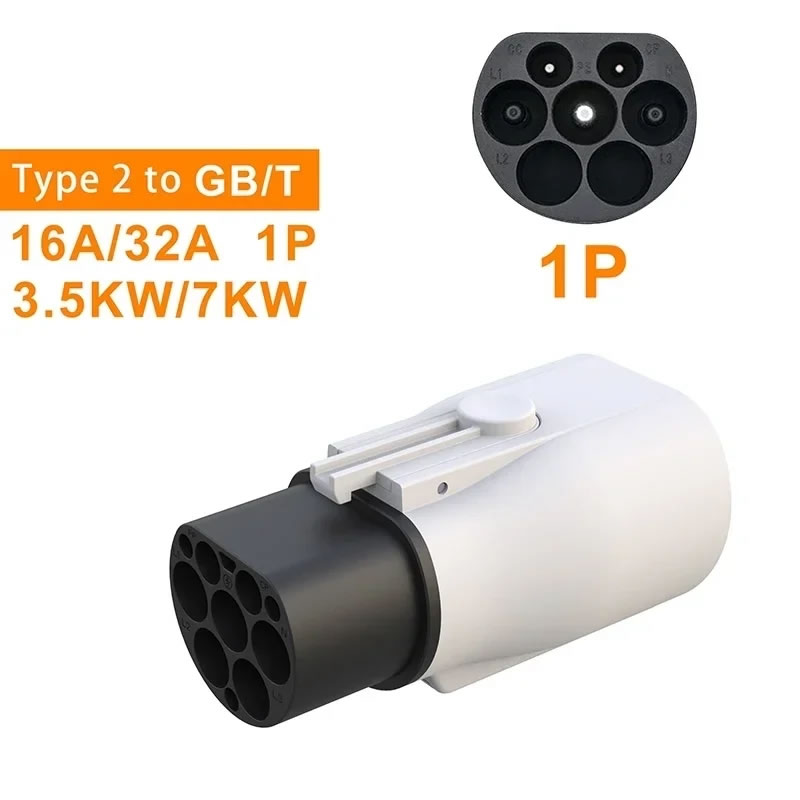

1.COMPACT CHARGING ADAPTER:Used to connect the IEC 62196-2 charger to your vehicle. With our adapter, Chinese standard cars can use IEC 62196-2 charging stations.

2.SMALL SIZE:Without cable,easy to carry.

3.RATED CURRENT AND VOLTAGE :230V AC , 50-60Hz, 32A Max. With an operating temperature of -22°F to 122°F (-30°C to +50°C). It does not slow down the charging speed.

4.WATERPROOF:The adapter is protected from water sprays,but it is not suitable for charging outdoors on rainy days.

Package Contents:

1*Charger Adapter
